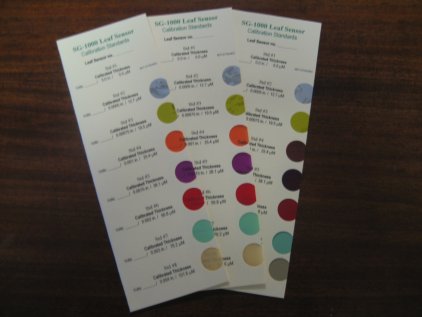

Leaf Sensor Calibration Standards Card
Item Details
Leaf Sensor Calibration Standards Card
Item Name:
Leaf Sensor Calibration Standards Card
Item #:
AH-300C
Price/ea:
$89.99  $79.99
Average Rating:

Calibrate Leaf Sensors

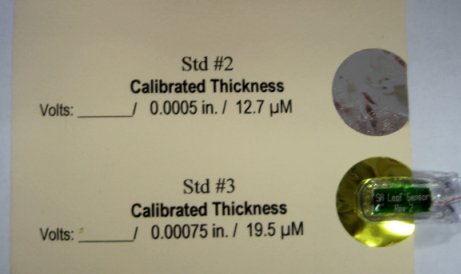

Easy to Use: Simply affix to the SG-1000 Leaf Sensor to any of the Calibrated Stds on the Calibration Stanrdards Card (shown above). Measure the voltage using the SG-1000 Leaf Sensor Analysis & Control Software (optional) or a standard digital mutltimeter (not supplied).

Includes:

  • 1 ea. Leaf Sensor Calibration Stardard Card
  • Seven individual micro-thin calibration disks
  • Voltage correlattion stardard form
  • Leaf Sensor no. form

Specifications:

      Seven Individual Calibrated Micro-Disks (Inches / Micrometers)

  • 0.0005 / 0.00075 / 0.001 / 0.0015 / 0.002 / 0.003 / 0.004 inches
  • 12.7 / 19.5 / 25.4 / 28.1 / 50.8 / 76.2 /101.6 micrometers
  • Tolerance: + 0.00001 inches

Optional Equipment from AgriHouse

For more info visit www.leafsensor.com & Leaf Sensor Blog

Quantity:


Related Items
Digital Leaf Sensor Meter
AH-300-Meter
Digital Leaf Sensor Meter for leaf sensor voltage readings - no external battery required. Special cable connects directly to a leaf sensor. Ready to take leaf sensor readings, connector/cable included.
$79.99

Leaf Sensor Rev4 w/clip  NEW for 2022
AH-304
Wearable plant Leaf Sensor Rev4 w/clip. GREAT price! It knows when to water. Wire insert into 3-wire connection. Precision Irrigation Monitor. Hurry while supplies last.

Arduino - Data logger Board - NEW!
AH-350
Leaf Sensor WiFi data logger - transmission of up to 3 ea to Google Device Drive Spreadsheet. Ready use with AgriHouse's patented Leaf Sensor. Open source code for Arduino MKR 1000.
$189.99

Leaf Sensor - The How To Use page
AH-300u
How to use the Leaf Sensor Rev3 for all plants. Know when to water. Easy to use. Measures water levels using a digital multimeter or data logger. Precision Irrigation Monitor when used with these devices. Click to BUY.
$289.99

Leaf Sensor Rev4 w/ cable, connector and software CD-ROM
AH-300
AgriHouse's NASA sponsored Leaf Sensor Rev4 wearable for plants. It knows when to water. Water resistant low power device Easy to use. Measures plant water levels using a digital multimeter or data logger for precision irrigation control.
$329.99  $289.99

Leaf Sensor, Data Logger DAQ & Software Package
AH-300-LSDAQ
Precision Leaf Sensor Data Acquisition Interface for analog-digital conversion of leaf moisture. Extended irrigation control for soil, aeroponics, hydroponics and drip. Includes leaf sensors, calibr., shielded cables, connectors, DAQ & control software.
$4,499.95

Calibration Stardard Card for calibration the Leaf Sensors -contains 1 ea. graduated calibrated micro-thin disks. Track voltage / inches (mm).
